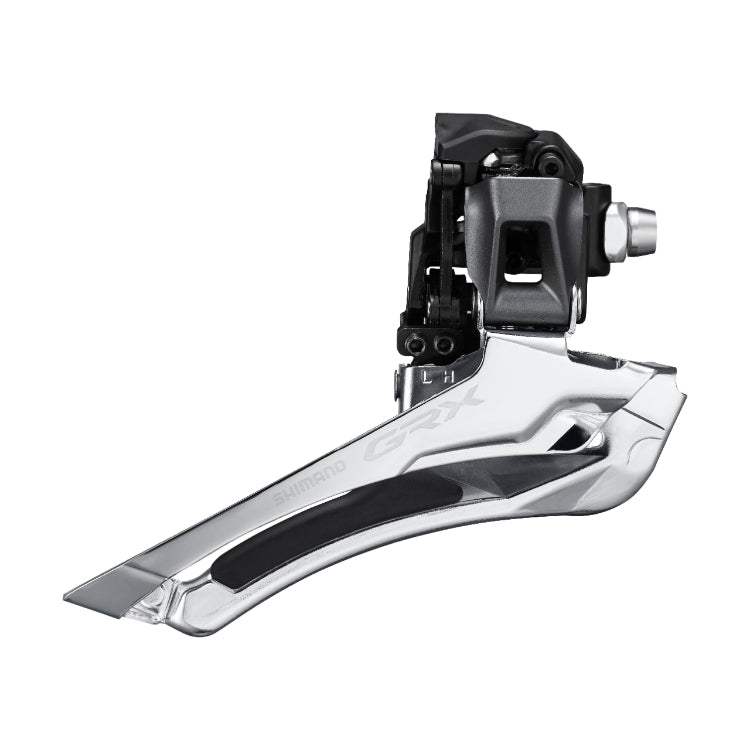

Shimano GRX FD-RX810 Front Derailleur

SHIMANO GRX - Front Derailleur - Gravel - 2x11-speed

The SHIMANO GRX RX-810-F front derailleur offer lighter front shifting operation and easier setup thanks to the new link construction and integrated cable tensioner. It features a 2.5mm outboard chain line design to allow wider tire clearance for mixed-terrain riding. The RX-810-F also accommodates a 17T front chainring range for wider gearing options.

Features:
Lighter front shifting

• Ergonomic power curve
• New link (toggle) construction
• Natural stroke feeling

• Chainline +2.5 mm vs. conventional road FD

• 17T front range

• More cable routing options
• New link (toggle) construction
• Integrated cable tension adjustment

• MODEL NO FD-RX810-F
• SERIES GRX 11-speed
• Color Series color
• Average weight 96
• Front speeds 2
• Rear speeds 11
• Compatible chain LINKGLIDE, HG 11-speed
• Action|Down swing ✔
• Mount|Brazed-on ✔
• Cable adjust ✔
• Chain line (mm) 47
• Chainstay angle (deg.) 63-66
• Top gear teeth 46-48T
• Total capacity 17T
• Link bushings 7
